SOD 10 C-FM

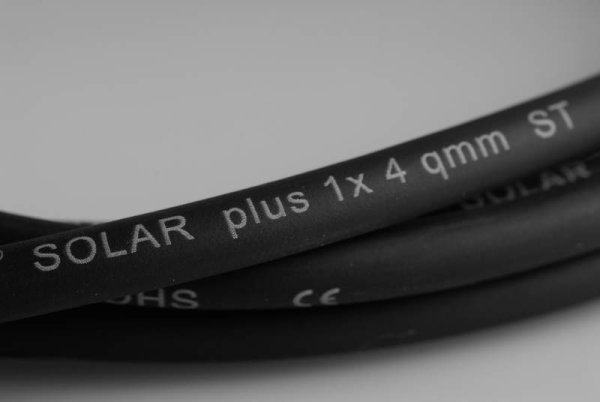

Offset marker for printing cables or insulated wires for line speeds up to 600 m / min

  • Indirect printing system
  • Marking of text and numbers
  • Single printing head
  • Print wheel drive up to and above 600 m / min
  • Exchangeable ink supply system
  • Irregular surfaces


Standard Configuration

Frame with support column and height adjustment crank mechanism.

Marking unit with synchronized drive for the printing disc.

Replaceable ink supply module with ink tank, pump, cooler, filters, and ink flow fine adjustment valve.

1 set of dedicated ink wiper, rubber reprint wheel and guide roller.

Complete accessories kit without printing discs.

Features

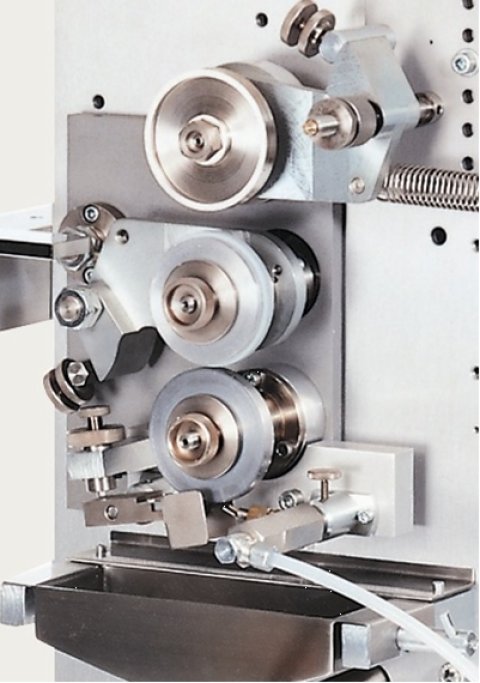

Offset printing machine using laser engraved printing discs and rubber faced transfer rolls.

Rugged, virtually maintenance-free AC drive.

Incremental tachometer and reference sensor mounted on the printing disc shaft provide exceptionally accurate synchronization.

Automatically synchronized stroboscope (optional) of extremely high light efficiency allows proper inspection even at slow marking speeds.

Electronically synchronized printing disc drive.

Integrated control electronics.

Replaceable ink supply module for quick color change within about 2 minutes.

Easy to set up and operate.


Special Version SOD 10-C

Integrated ink supply system with diaphragm pump and ink suction pipe for use with original containers. Suitable for water based inks.


Specifications

Max. marking speed:

10 to 600 m / minute

Product diameter:

approx. 22 mm

Printing disc:

diameter 80 mm, center hole diameter 16 mm
