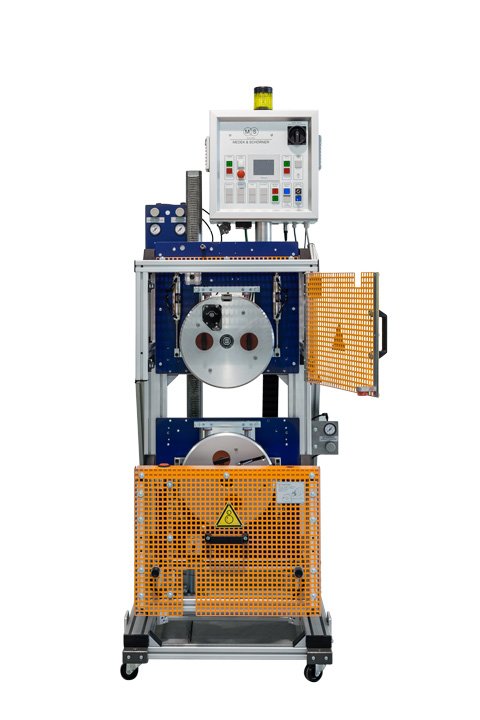

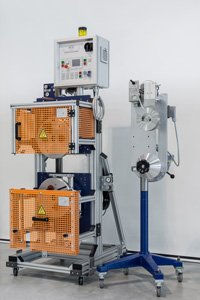

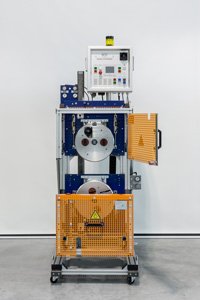

KMS 1-4

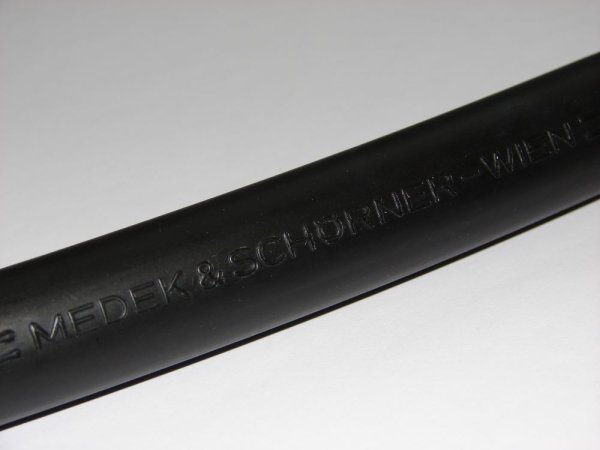

Embossing text and meter marks in cable insulation immediately after the extruder.

  • Text and meter marking
  • Embossed stamping immediately after the extruder
  • Speeds up to 300 m / minute

Standard Configuration

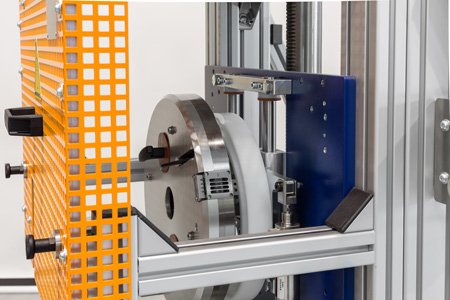

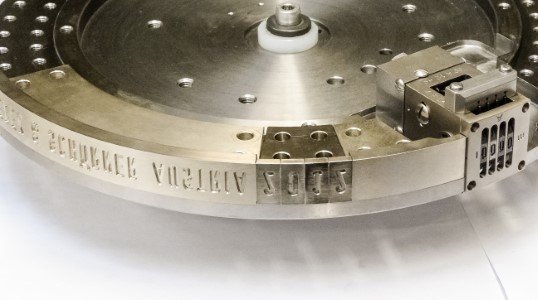

One marking wheel 1 m in circumference with built-in 4-digit meter counter and 300-mm type segment supports for installing engraved type segments.

With robust pillar stand and guiding rollers for a diameter range of 10-250 mm (or 6-80 mm without price change).

Marking head and guiding rollers separately adjustable in height by rack-jack devices.

No heating system.

Counter: recessed type with decompression ducts for clearer lettering, manual reset lever.

Features

Standard application: Embossed stamping of product length in meters and of user selectable text.

Optional, manually adjustable coding heads for stamping frequently changing code numbers.

Complete with all required accessories except engraved type segments.



Specifications

Product diameter:

6 to 250 mm (Standard version)

Marking speed:

300 m/minute max.


Optional Devices

A range of optional extensions is available for all KMS1 Series machines, allowing you to adapt your machine exactly to your production needs.
