KS 422 C-FM

Gravure printing machine with tandem printing station for marking hot cable insulation at medium speeds. Marking cable with quick code and color change possibility within the extrusion line.

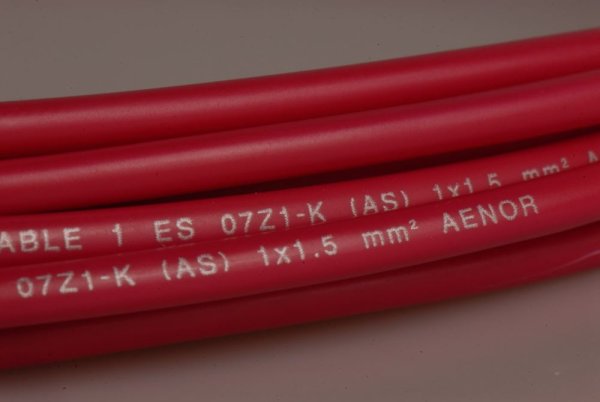

  • Marking of text and numbers
  • Tandem printing head
  • Quick change of legend
  • Medium speed
  • Exchangeable ink supply system



Standard Configuration

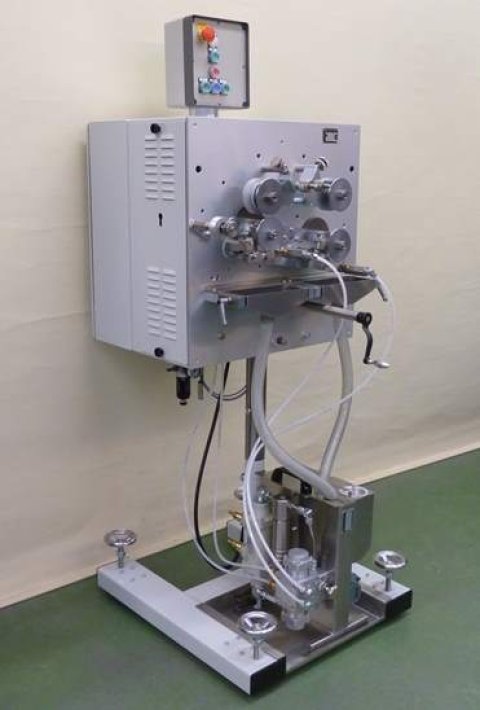

Frame with support column and height adjustment crank mechanism.

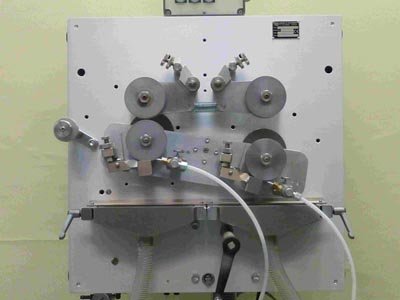

Tandem printing station for two diffe­rent, free-running printing discs.

Integrated pneumatic printing disc selector with additional control input for automatic switching via external contact closure.

1 set of dedicated ink wipers and guide rollers matching the specified printing discs.

Replaceable ink supply module with ink tank, pump, cooler, filters, and ink flow fine adjustment valve.

Complete accessories kit without printing discs.

Features

Friction driven medium speed gravure printer.

Quick switching between two different codes with no loss of marks.

Replaceable ink supply module for quick color change within about 2 minutes.

Suitable for printing discs with flat or concave rim matching the cable diameter.



Specifications

Max. printing speed:

400 to 800 m/min depending on insulation material and marker location within the production line

Cable diameter:

1 mm to 24 mm (up to 80 mm with option G)

Printing discs:

86 mm in diameter, flat or concave rim
