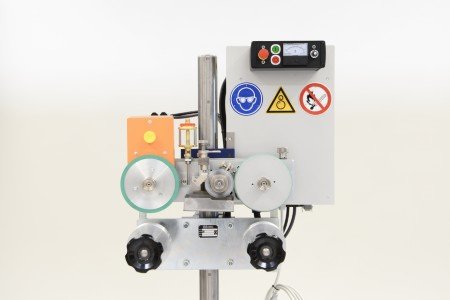

General-purpose offset printing system for cold plastic tubing and hoses as well as plastic insulated cables including products with irregular surfaces.

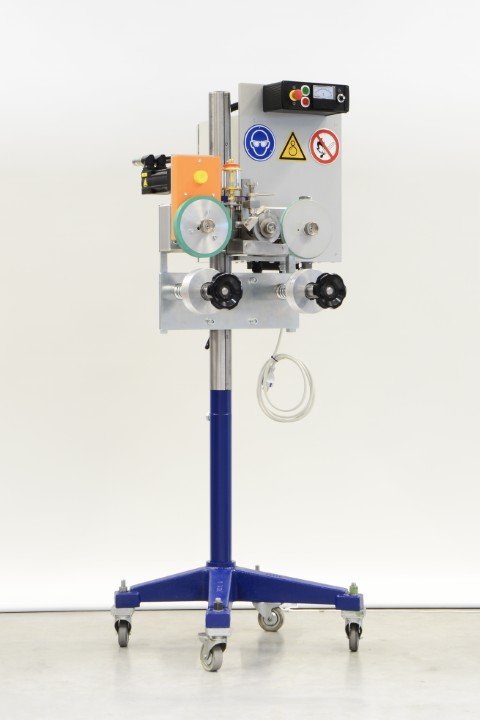

Frame with support column and height adjustment crank mechanism.

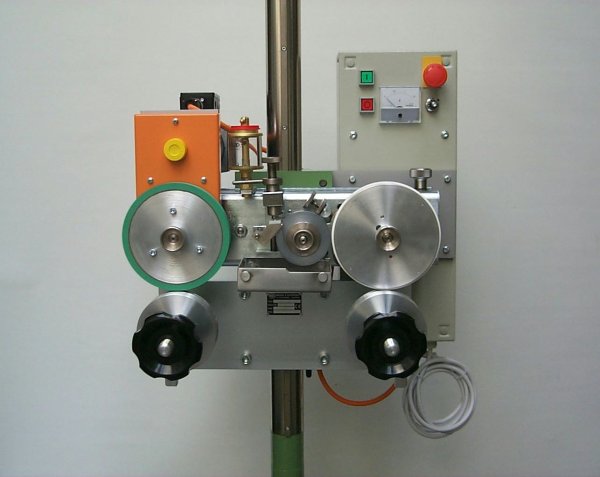

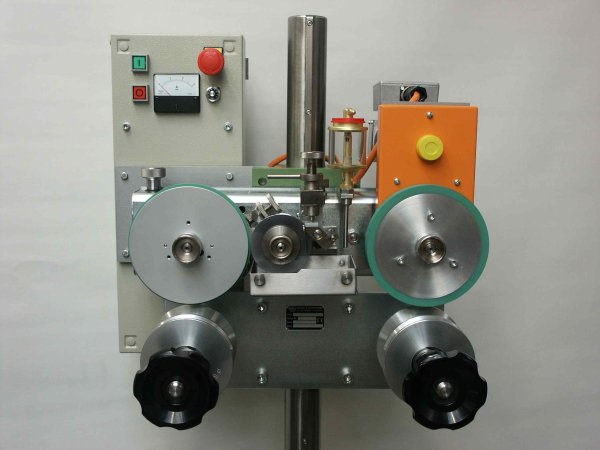

Marking unit with one marking station, guide rollers, and drive wheel.

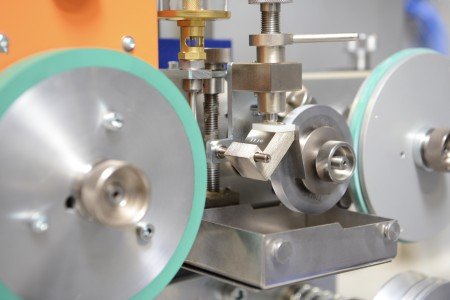

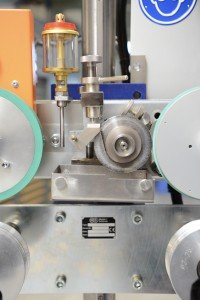

Complete marking station with ink tank, solvent feed unit, printing disc shaft, and rubber faced transfer roll.
1 set jof dedicated ink wipers and guide roller matching the specified printing disc.
Complete accessories kit without printing discs.
Offset printing machine with laser engraved steel printing disc and rubber faced transfer roll
Also suited for flexo printing using rubber plates (available separately)
Printing discs driven by product being marked

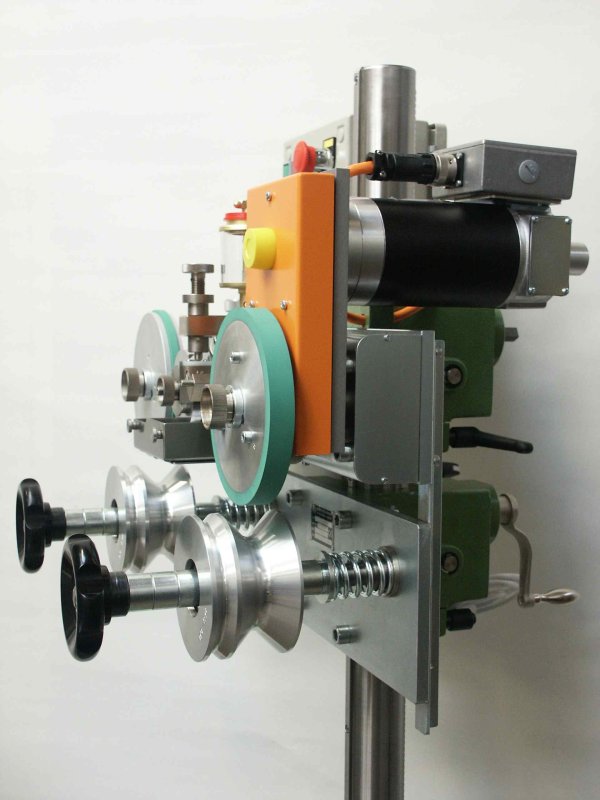

Available on request with auxiliary drive for marking delicate product or products of small diameters or with slippery surfaces
Available on request with electronically synchronized drive
2 x US 10 for double-sided top or bottom printing
US 10-T with two synchronized marking stations for extra-long legends
Max. printing speed:
150 m / minute
8 mm to 250 mm (standard) up to 400 mm (special version)
Max. spacing of marks:
Max. character size:
18 mm (standard), 40 mm (special printing disc)
