US 10-R

General-purpose offset printing system for cold plastic tubing and hoses as well as plastic insulated cables including products with irregular surfaces.

General pupose printer
Indirect printing system
Marking speeds up to 150 m / minute
Marking cold plastic tubing and hoses as well as plastic insulated cables including products with irregular surfaces

Standard Configuration

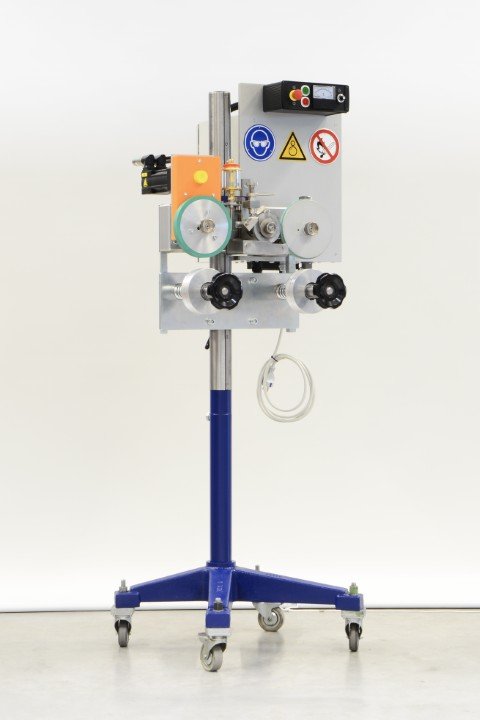

Frame with support column and height adjustment crank mechanism.

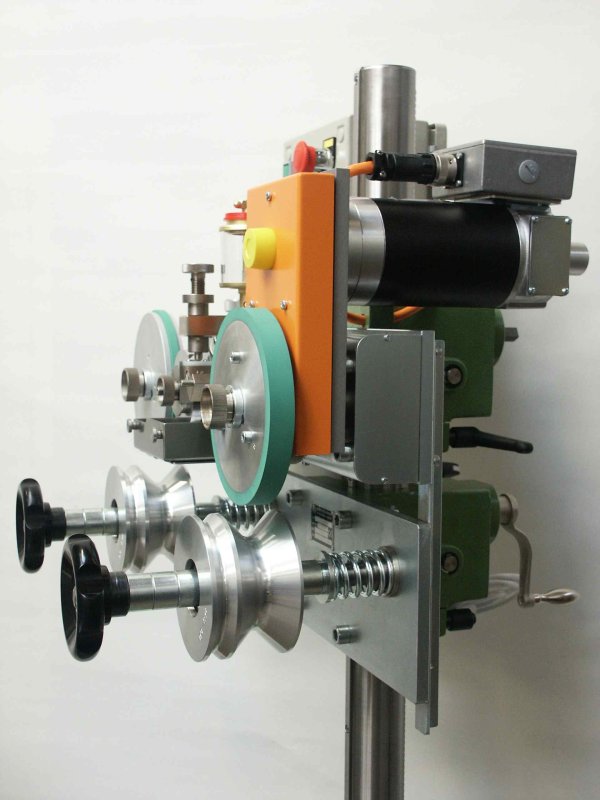

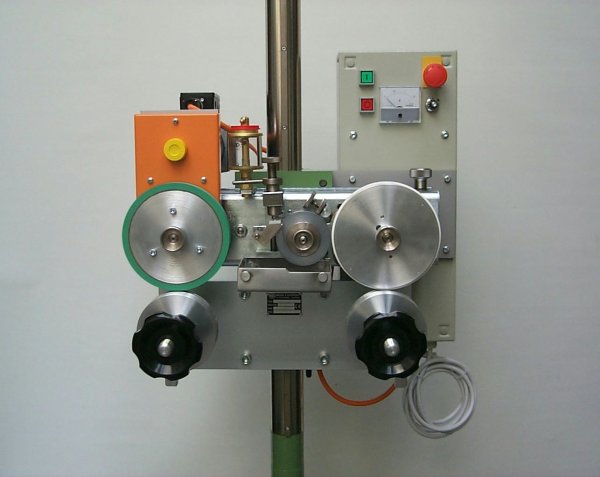

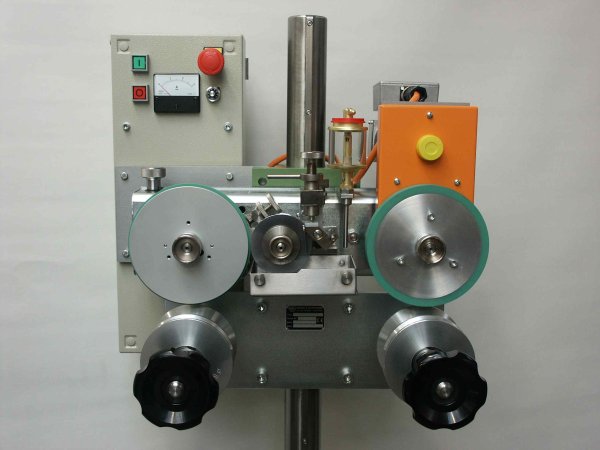

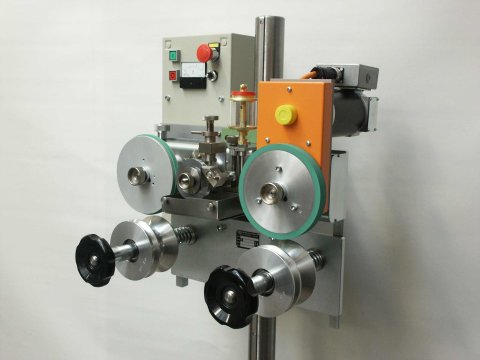

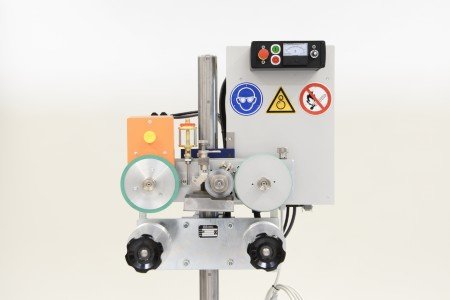

Marking unit with one marking station, guide rollers, and drive wheel.

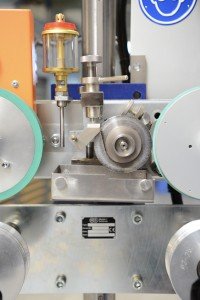

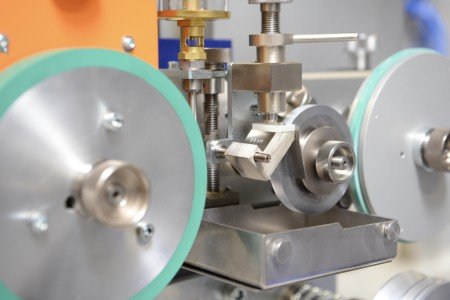

Complete marking station with ink tank, solvent feed unit, printing disc shaft, and rubber faced transfer roll.

1 set jof dedicated ink wipers and guide roller matching the specified printing disc.

Complete accessories kit without printing discs.

Features

Offset printing machine with laser engraved steel printing disc and rubber faced transfer roll

Also suited for flexo printing using rubber plates (available separately)

Printing discs driven by product being marked

Available on request with auxiliary drive for marking delicate product or products of small diameters or with slippery surfaces

Available on request with electronically synchronized drive

Special versions

2 x US 10 for double-sided top or bottom printing

US 10-T with two synchronized marking stations for extra-long legends

Specifications

Max. printing speed:

150 m / minute

Product diameter:

8 mm to 250 mm (standard) up to 400 mm (special version)

Max. spacing of marks:

500 mm

Max. character size:

18 mm (standard), 40 mm (special printing disc)
