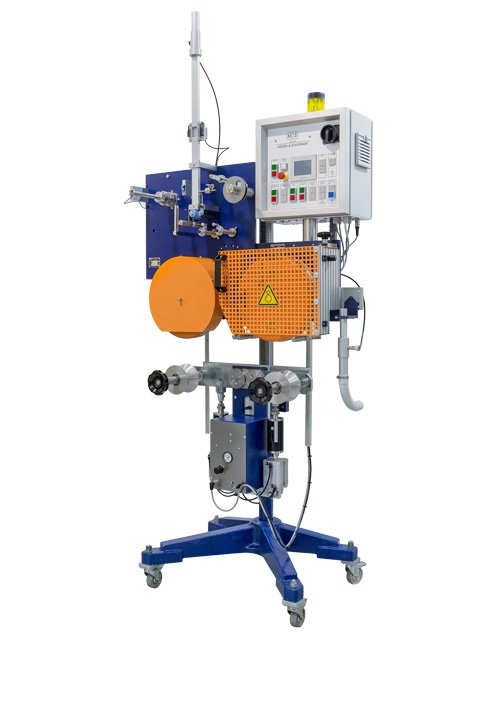

FMS 2-C

Marking cold product within the extrusion line - downstream from the cooling bath and drying fan - or as a separate operation (e.g., in a winding system).

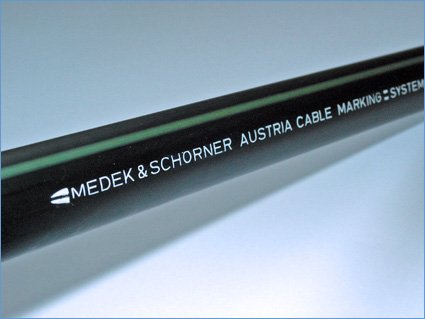

  • Meter marking by hot foil stamping
  • Speeds up to 150 m/minute and above with special color tape pay-off unit


Standard Configuration

One marking wheel 1 m in circumference with built-in 4-digit meter counter and 300-mm type segment supports for installing engraved type segments.

Complete high-performance heating system.

Counter: raised type, standard number size: 3.5 mm, manual reset lever.

Marking wheels available separately for quick changing of text or codes.

Convertible to footage marking by re-placing sensing and marking wheels.



Features

Hot stamping marker using electrically heated, engraved dies and pigment tape.

Marks product length in meters.

Optional, manually adjustable coding heads for stamping frequently changing code numbers.

Prints user selectable text.

Abrasion-proof, exceptionally clear lettering.

Complete with frame, guide roller assembly, heating systems, electronic control cabinet, and all required accessories except engraved type segments.



Specifications

Product diameter:

10 to 250 mm

Marking speed:

Up to 60 m/minute (standard version); up to 150 m/minute and above with special pigment tape transport.

Available for left-to-right or right-to-left running.


Optional Devices

A range of optional extensions is available for all FMS Series machines, allowing you to adapt your machine exactly to your production needs.
