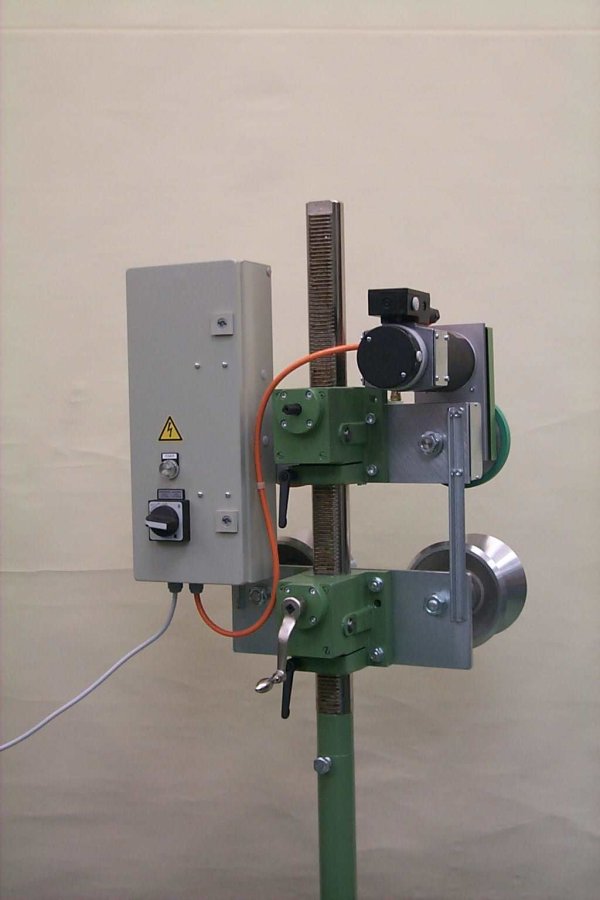

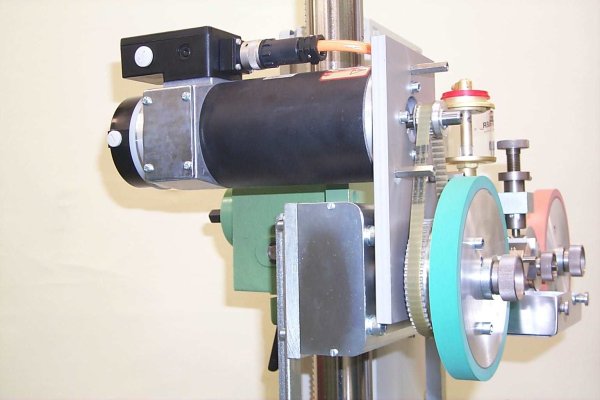

An electric motor provides a constant, adjustable pushing or braking torque independentely of the marking speed. This reduces the strain on the product and ensures perfect synchronization even for small product diameters.
Recommended for machines used for marking products of low mechanical strength.

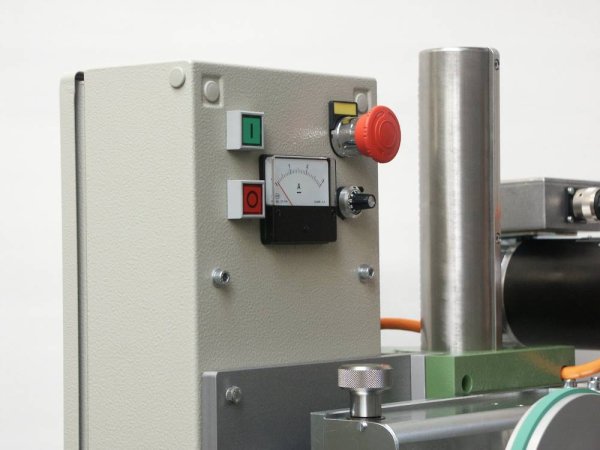

A remote tacho generator supplies a control signal for synchronizing the printing wheels to the product. The power supply and control electronics are housed in a separate control cabinet.
Allows the printing ink to be changed in about 2 minutes. Ink can be stored in the ink tank for several weeks with no degradation of ink properties.

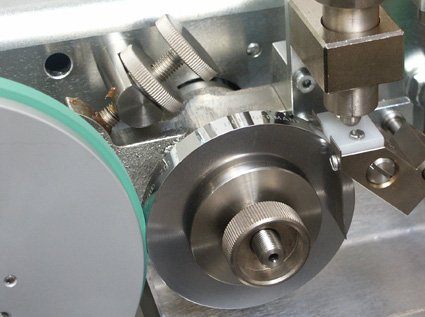

Printing discs are available with any combination of numbers, letters, or other characters (specify when ordering).
Standard size: 80 mm in diameter, with 16-mm central hole.
Etched rollers for inking the rubber plates of flexographic machines.
Plug-in plates for easy legend assembly on flexographic machines. Individual letters and custom type plates are available.
Polyamide wipers for printing discs or inking rollers. Several ink wipers are supplied with each flexographic marker. However, we recommend to keep several replacement ink wipers for each type of printing disc and inking roller used.
Rings made of optimum-grade rubber are available for many applications.
Standard sizes for US 10-R, OFD, and DOK 1: 160 dia. mm x 8 mm (6 mm)
Standard sizes for SOD 10: 80 dia. mm x 6 mm
M&S offset markers can be used with all commercial solvents and inks with a viscosity of approx. 50 to 150 seconds (as measured with a DIN 4-mm measurement cup). Use inks containing low to medium volatility solvents only, in order to prevent premature pigment caking on the printing wheels.
