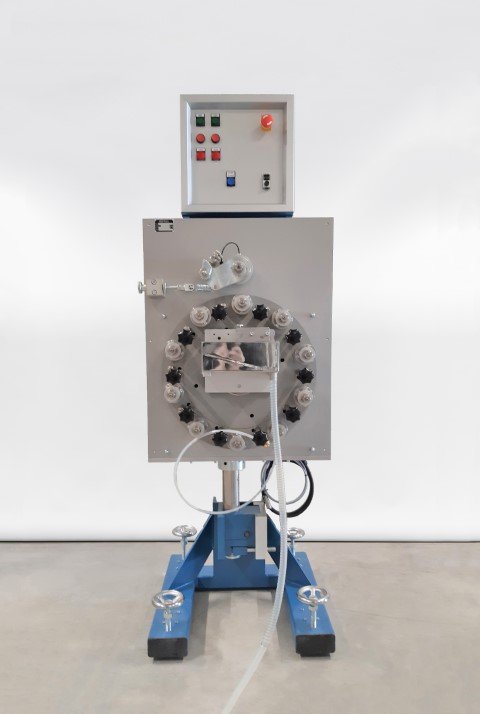

KS 800-FM

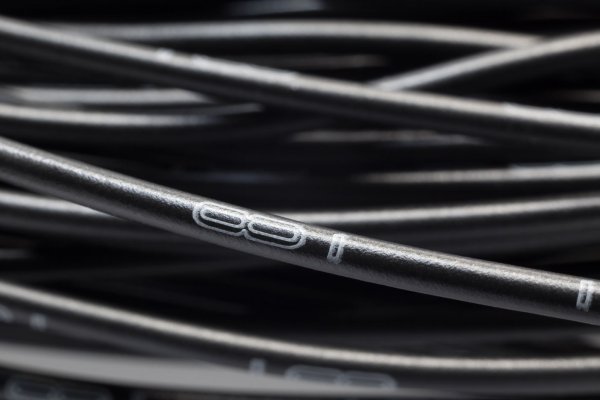

High-performance gravure printing machine with turret marking unit for marking hot cable insulation.

  • Ten printing stations
  • Marking of text and numbers
  • Printing speeds up to 1200 m / min
  • Exchangeable ink supply system




Standard Configuration

Frame with support column and height adjustment crank mechanism.

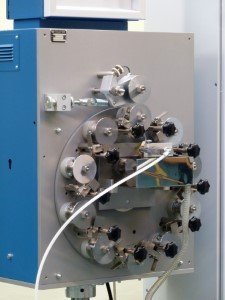

Turret marking unit with precision drive for ten different printing discs.

Integrated pneumatic printing disc selector and control electronics with additional input for automatic sequencing via external contact closure.

One ink wiping system per printing disc for easy setup and low doctor blade wear.

Replaceable, compact ink supply module with ink tank, pump, cooler, filters, and ink flow fine adjustment valve.

Complete accessories kit without printing discs.

Features

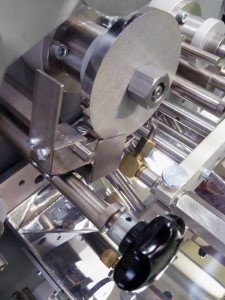

Electronically controlled precision drive for printing disc drive.

Ten different marking codes selectable manually or automatically with no loss of marks.

Replaceable ink supply module for quick color change within about 2 minutes.

Suitable for printing discs with flat or concave rim matching the cable diameter.


Specifications

Max. printing speed:

1200 m / minute

Cable diameter:

1 mm to 20 mm

Printing discs:

86 mm in diameter, flat or concave rim
