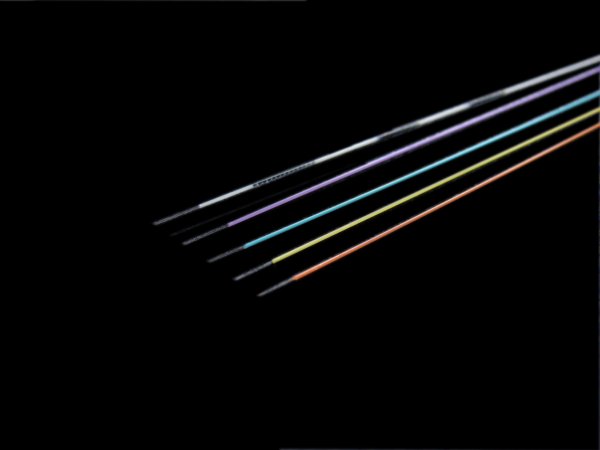

Coating of optical fibers with UV curable inks. Independent, simultaneous processing of up to 6 fibers. Ink coating system for high processing speeds.

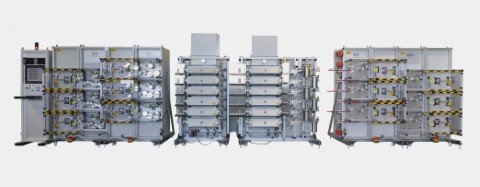

The system comprises three main components that can be equipped and extended with up to six processing units. This means that up to six fibers can be coated simultaneously and independently.

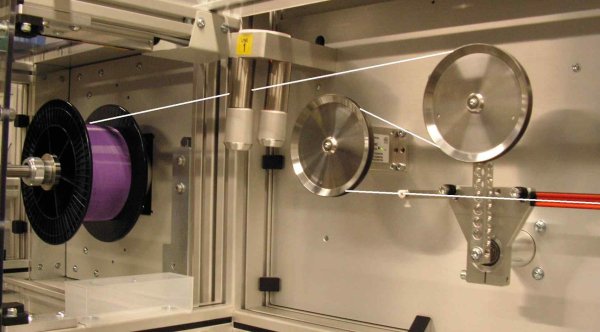

TPO-L Autotraversing Pay-off Unit

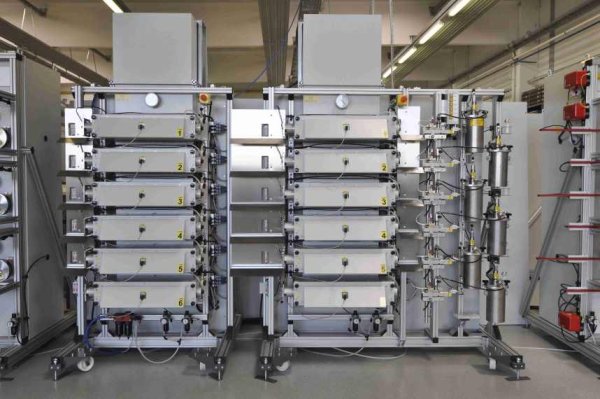

CCD-L Coloring and UV curing Station
Ink supply system, high-speed coating head, and high performance M550 UV irradiator unit mounted on a common frame.

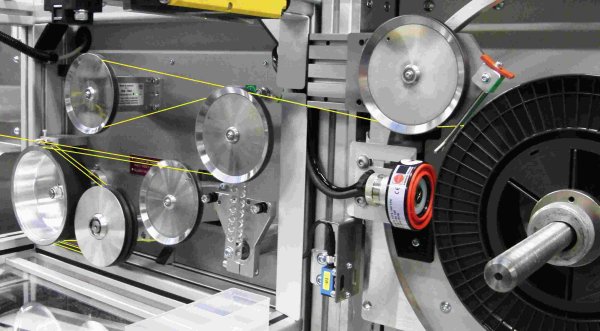

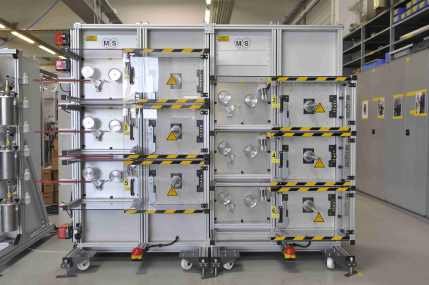

High-speed capstan and take-up system with separate control cabinet.
PCI-L Control Unit
Fiber tension sensors ensure optimized fiber tension control.
Automatic reel size detection makes it extremely easy for the operator to adjust the traversing system.
New M550 UV irradiator with control system that constantly measures the irradiator power and automatically adjusts the power output to match the fiber speed. This ensures optimum irradiator efficiency and prevents thermal overloading of the fiber at slow speeds or at standstill.
Automatic compensation for irradiator aging or quartz tube deterioration maintains flawless curing.
Top constructional speed up to 2100 m/min.
Optimum fiber protection.
Continuously adjustable, nitrogen-aided UV curing.
Automatic adjustment of processing speed to UV irradiator curing performance.
Pay-off and take-up with fiber tension-controlled drives.
