KS 20 C

Gravure printing machine for printing on cold or hot plastic or rubber insulated wire or cable.

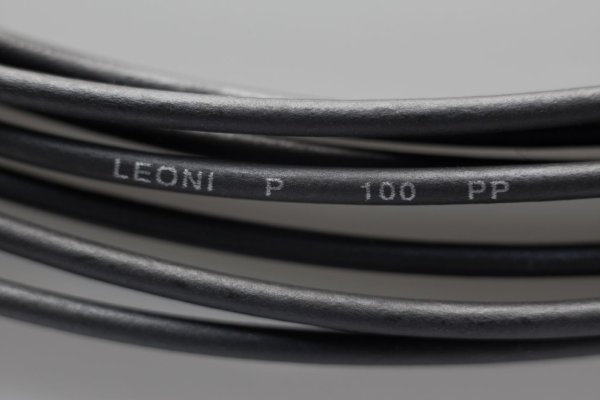

  • Marking of text and numbers
  • Speeds up to 150 m / min
  • Dip-in ink supply system




Standard Configuration

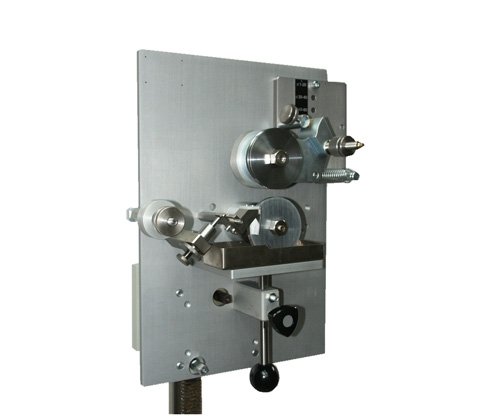

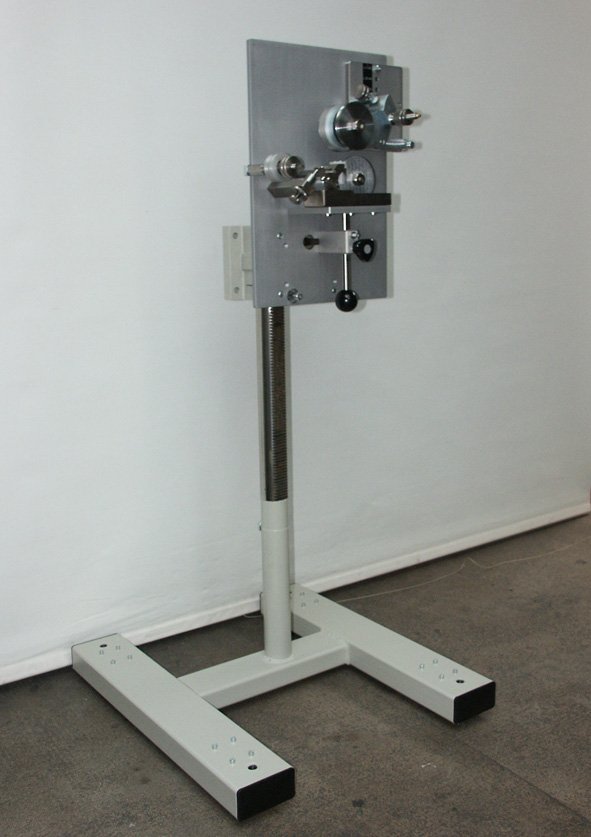

Frame with support column and height adjustment crank mechanism.

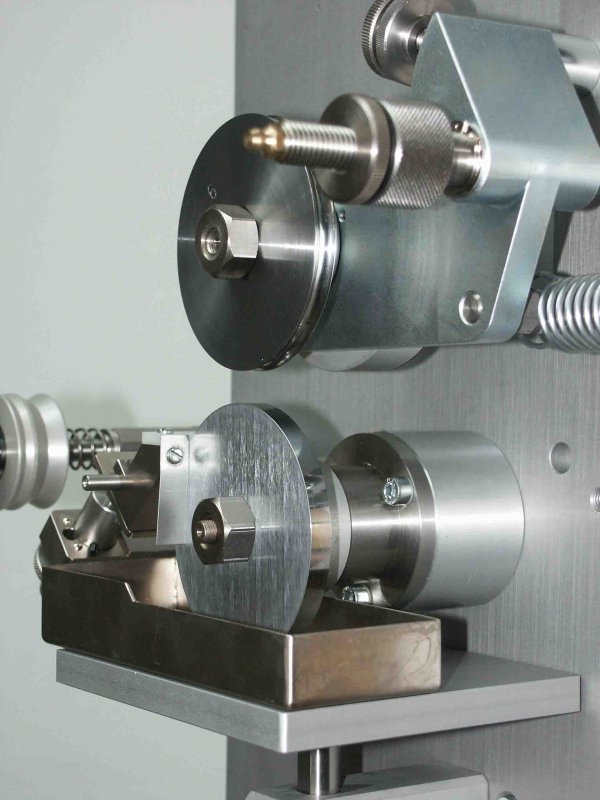

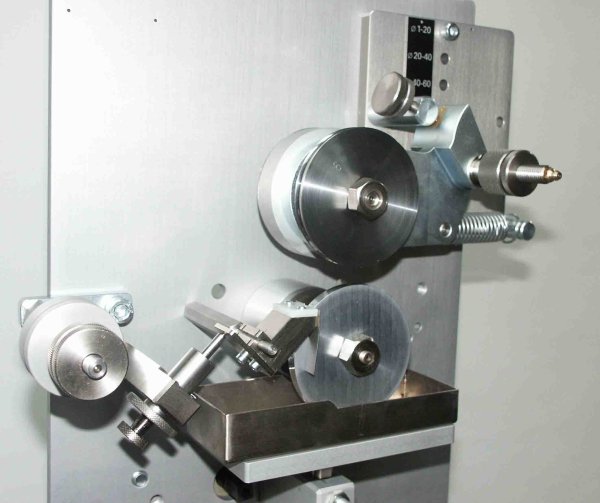

Marking unit for one printing disc with guide roller.

1 dedicated wiping system for the specified printing disc.

Complete accessories kit without printing discs.

Printing discs are available separately.

Features

Laser engraved printing disc.

Ink wiping system for flat and concave rim printing discs.

Printing disc supplied with printing ink by immersion.

Marking cable within the production line, downstream from cooling bath and drying fan.

Marking cable in a separate winding system.



Specifications

Max. printing speed:

150 m / minute

Cable diameter:

1 mm to 80 mm
