KS 40 C

High-performance gravure printing machine with single printing station for marking hot cable insulation.

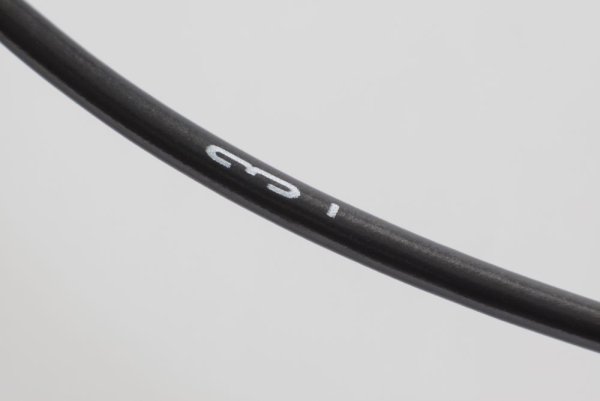

  • Marking of text and numbers
  • Medium speeds
  • Ink supply system for use with original ink containers
  • Single head

Standard Configuration

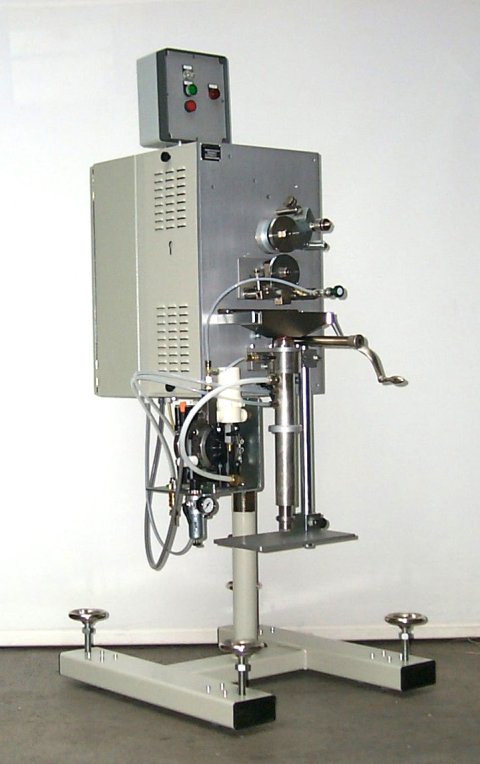

Frame with support column and height adjustment crank mechanism.

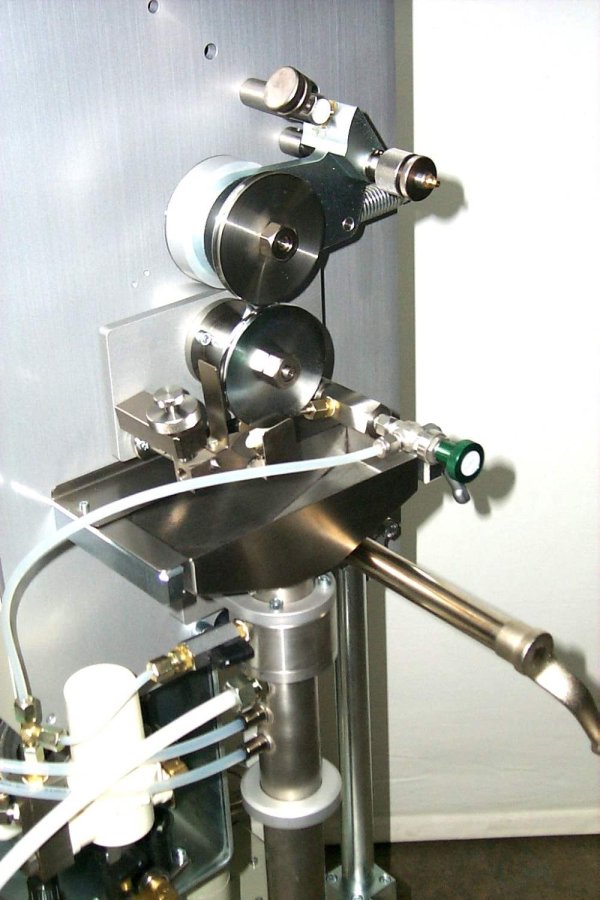

Marking unit with synchronized drive for one printing disc.

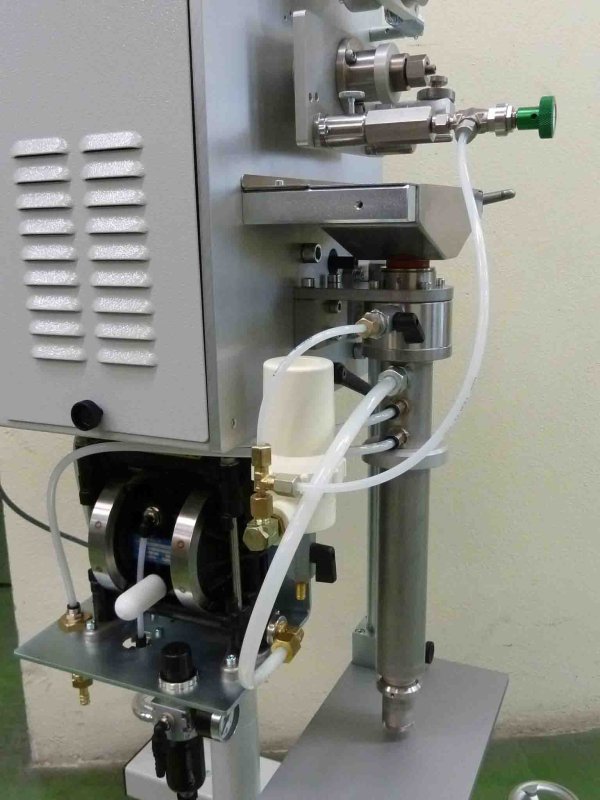

Diaphragm pump and ink suction pipe for use with original containers supplied by ink manufacturers.

1 set of dedicated ink wipers and guide roller matching the specified printing disc.

Complete accessories kit without printing discs.

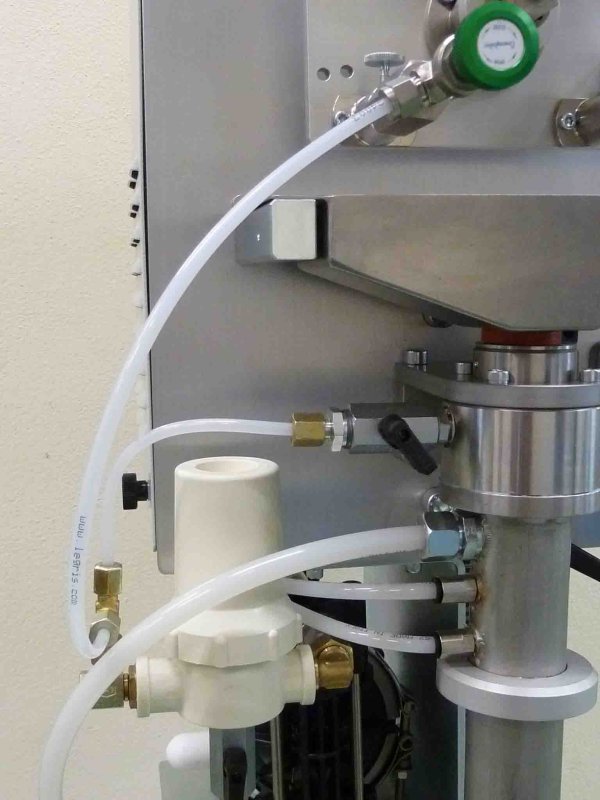

Integrated ink supply system for use with original ink containers.

Quick and easy color changing.

Suitable for printing discs with flate or concave rim matching the cable diameter.



Max. printing speed:

400 - 800 m / minute (depending on the application)

Cable diameter:

1 mm to 24 mm (up to 80 mm with option G)

Printing discs:

86 mm in diameter, flat or concave rim
