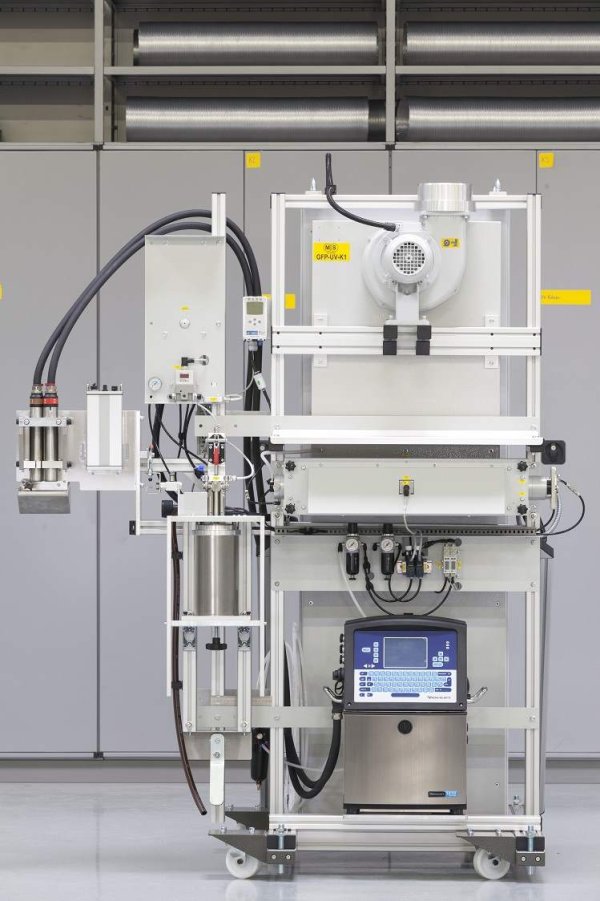

Special high speed adapted ink jet printer with finely adjustable printhead support for marking bandmarks from one side on the fiber at speeds up to 1150 m/min. The usual arrangement allows bandmarking in line with the ink coating process, providing irradiator units after the ink jet printhead and the ink applicator. In case that no additional UV lamp unit and only the UV lamp of the UV curing unit CCD1-K unit is available, bandmarking has to be done in a separate process (either bandmarking or ink coating). The microprogram of the ink jet printer is specially adapted for ultra high speed bandmarking with automatic control of a constant bandwidth over the full speed range. Bandmark pitch and interband distance for multiple bandmarks (double, triple, etc.) are easily programmable on the computer screen.
Triggers a warning signal as the ink level drops below minimum.
The standard version provides indicators for the fiber tension at the pay-off and take-up. The extended version includes a capacitive tension sensor in front of the capstan and an alarm signal generator with adjustable maximum threshold. Thus, option HGM enhances operational reliability, e.g., by triggering an alarm signal if fiber tension rises due to clogged ink nozzles.

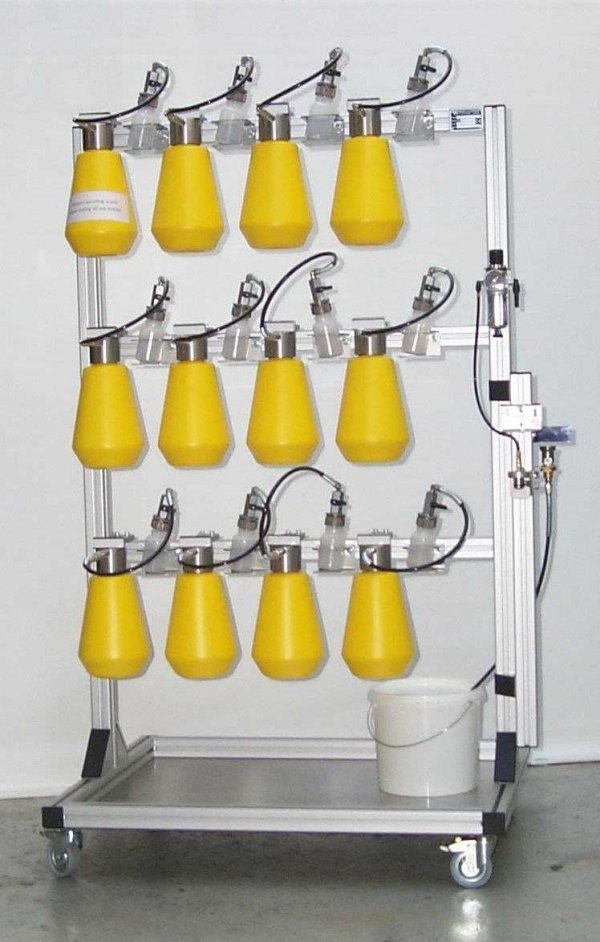

For spare containers, a special rack is available providing the facility to take up up to 12 ink containers in an easily accessible position for quick use and also for storage of ink or coating material. A compressed air supply with support for a solvent container is provided for rinsing ink tanks.

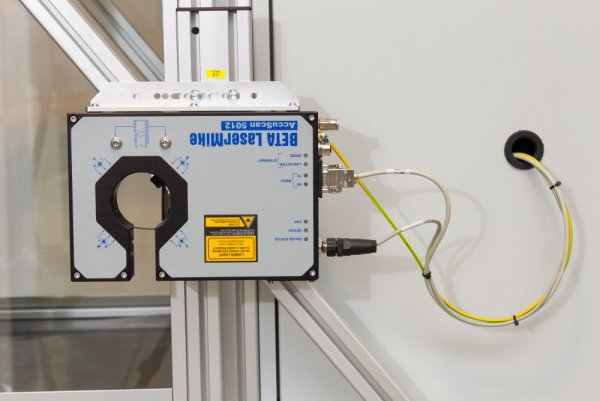

Allows permanent supervision of the ink application quality by either single axis (DMK-X) or double axis (DMK-XY) diameter measurement on the colored fiber. Automatic input of the data to statistical evaluation is provided.

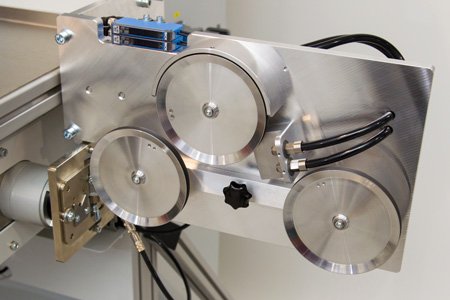

An optional in-line proof tester allows defined fiber tension increase during coloring or rewinding.

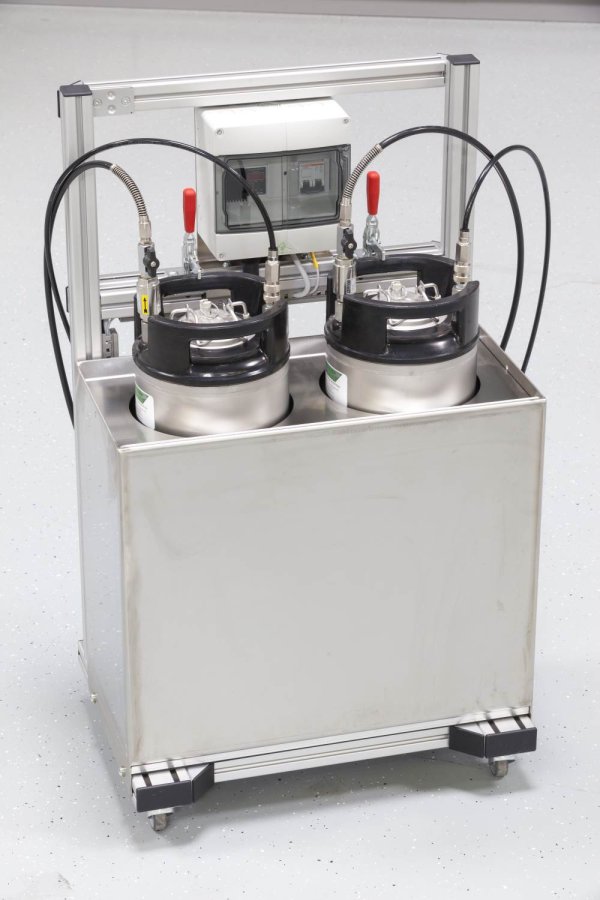

The extension HZT is an arrangement for maintaining constant temperature of buffer or resin material for the optical fiber line series GFP or FRP.

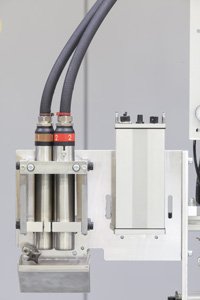

Optical fibers can be coated (tight buffered) individually or jointly in groups. For this purpose, a special resin coating head is used instead of the coloring head. Available standard system components allow two stage online tight buffering in a single operation. A resin pressure control maintains a constant outside diameter throughout the entire processing speed range.
The cable marker KS 42 C-FM FRM is a high‑performance marker to be installed in combination with a fiber ribbon production line and has been especially designed for the purpose of high-speed gravure printing on hot fiber ribbons.
